1200x1000mm Heavy Duty Rackable Export Plastic Pallet

1200x1000mm Heavy Duty Rackable Export Plastic Pallet
Rackable with three runners design.

Recycled material ,Ideal for one way shipping or temporary racking with minimal forklift handling.

Inquire now

(0) Reviews

PRODUCT DESCRIPTION

Product description*

XIMIN Model 041-LYCW1210D(Eco) is one of the best-selling one way shipping pallet .

To maximize cost-effectiveness, this pallet is made entirely from recycled materials, offering the lowest possible price while fully maintaining its load-bearing performance.

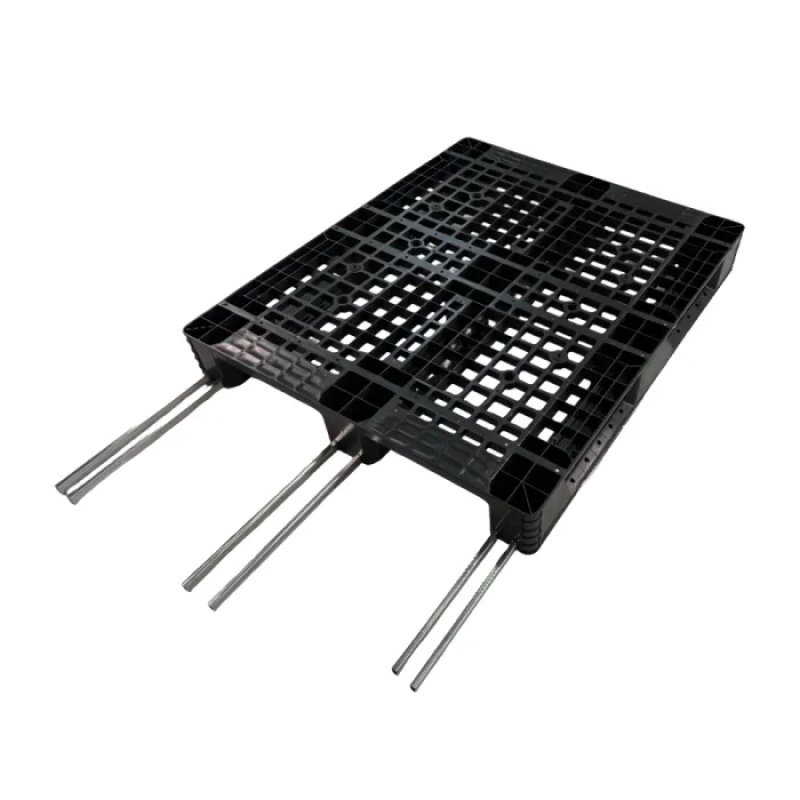

Its primary advantage lies in the customizable number and positioning of steel tubes, making it highly suitable for both racking storage and automated conveyor applications.

It is broadly applicable across virtually every industry and suitable for almost any applications (with the sole exception of heavy-duty stacking applications) and fully compatible with all types of forklifts .

Material : 100% Recycled PP/HDPE.

Note:

The primary focus of this model is affordability, making it suitable for infrequent use.

For applications requiring higher specifications, we would recommend different material or different models.
Technical data

Technical data

Version	Size (L × W × H)	Static Loading	Dynamic Loading	Rack Loading	Self-weight (S0.5)	Qty/40ft HC
5	1200 × 1000 × 150 mm	4000 kg	1000 kg	200 kg	11.0 kg	570
45	1200 × 1000 × 150 mm	6000 kg	1500 kg	300 kg	13.4 kg	570
65	1200 × 1000 × 150 mm	4000 kg	1000 kg	1000 kg	15.5 kg	570
105	1200 × 1000 × 150 mm	6000 kg	1500 kg	1500 kg	18.0 kg	570

*S means Steel tubes. 10S = Reinforced with 10 steel bars

*Rack loading based on Selective racking systems.

FAQ

What is the Eco/Recyclable Version?
This model is made from fully recycled plastic, designed to maintain load-bearing capacity while offering the lowest purchase price, making it particularly suitable for one-way export shipments.
Can it be used in automated storage and retrieval systems (AS/RS)?
Yes. However, its suitability for racking and the weight it can bear depends on whether you opt for built-in steel tubing (e.g., 4- or 6-tube configuration). The tubeless version (OS) is not recommended for heavy-duty racking.
Is fumigation required?
No. Plastic pallets naturally comply with International Phytosanitary Measures Standard (ISPM 15), eliminating the need for the cumbersome fumigation and quarantine procedures required for wooden pallets, allowing for direct customs clearance for export.
Is it suitable for repeated use?
The main advantage of the Eco version is its affordability and suitability for one-way or low-frequency use. For high-intensity, long-term turnover and repeated use, the official recommendation is usually to choose a non-Eco standard virgin material or a specific heavy-duty reinforced model.

ONLINE CONSULTATION

PRODUCTS RECOMMENDED

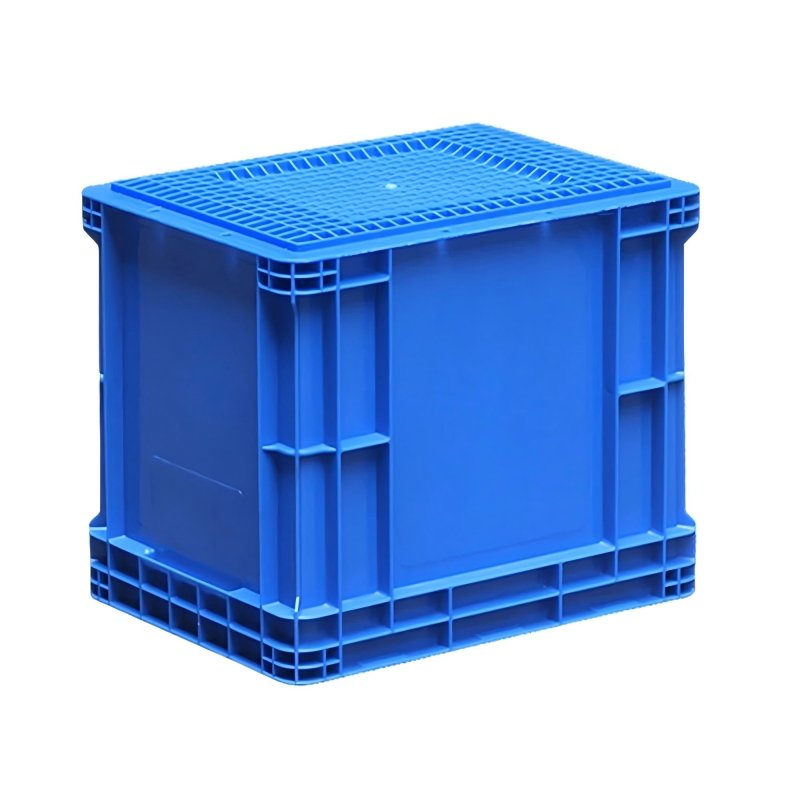

High Quality Hdpp Plastic Crate Turnover Box Workshop Storage Heavy Duty Solid Box Plastic Turnover Box
